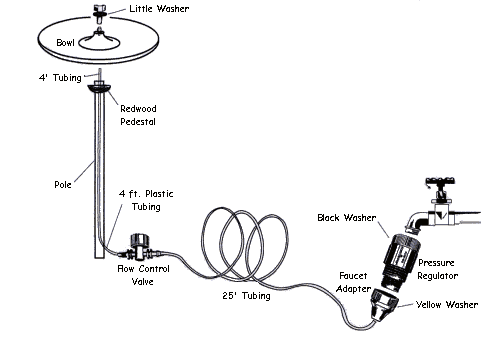

A. ASSEMBLING THE BATH
1. Place your hands on the copper pole and push it firmly into the ground.
2. Grab the 4 foot tubing near the bottom of the pole, and push the tubing up
through the top of the pole until it sticks out about 6 inches or so.
3. Unscrew the SPRINKLER HEAD & SMALL RUBBER WASHER from the top of
the tubing.
4. Insert the SPRINKLER HEAD (with the washer)
through the
hole
in the copper bowl and screw it tightly into the
tubing, using a small wrench if needed.
5. Gently pull the tubing down through the bottom of the pole until
the copper bowl is seated firmly on the redwood pedestal.
B. GETTING IT ALL TOGETHER
1. Attach the 25 foot tubing with the
FAUCET ADAPTOR & PRESSURE
REGULATOR
to a faucet or a hose. (You may want to cut the tubing to the desired
length.)
2.
Screw the FLOW CONTROL VALVE
into the 4 foot tubing at the bottom of the pole, thereby connecting
all the tubing. The fit will be tight. (It may be easier to first remove the
valve from the longer tubing, screw the valve into the pole tubing and then
re-attach the longer tubing.)
3. Tubing can be concealed from view by slicing a groove in
the ground along the desired route and pressing the tubing gently into
this channel.
4. Turn the faucet on slightly and adjust the flow using the
FLOW CONTROL
VALVE
to adjust the height of the spray.
